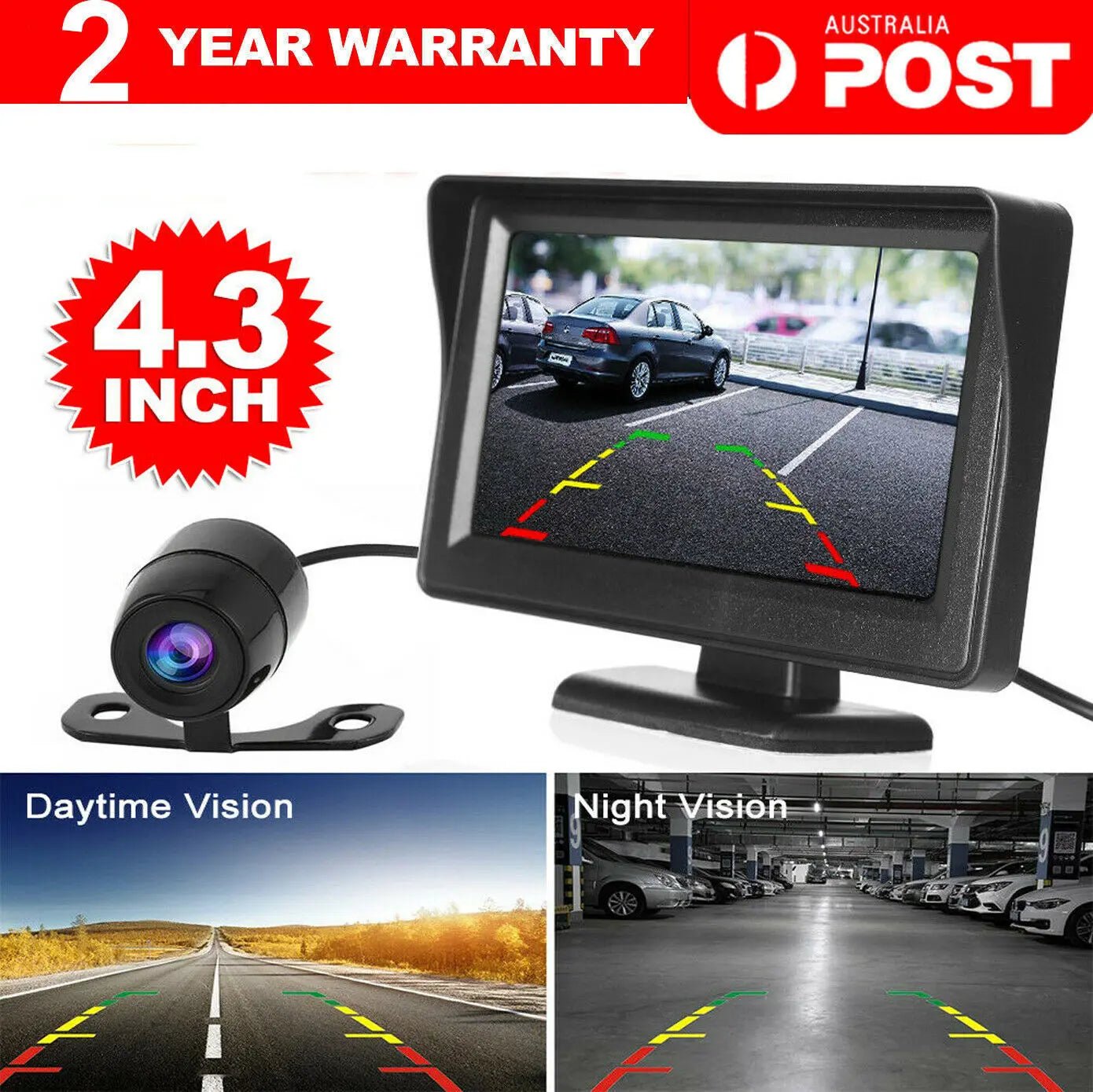

Car Reversing Camera Kit with 4.3" TFT LCD Monitor & Night Vision

Car Rear View Camera Kit – 4.3" TFT LCD Monitor with Night Vision

Improve reversing visibility with this car rear view camera and monitor kit, designed to provide a clear rear image when backing up or parking.

The 4.3" TFT LCD monitor displays real-time video from the reversing camera, helping improve awareness behind the vehicle in both daytime and low-light conditions.

Key Features

✔ 4.3" TFT LCD colour monitor (16:9)

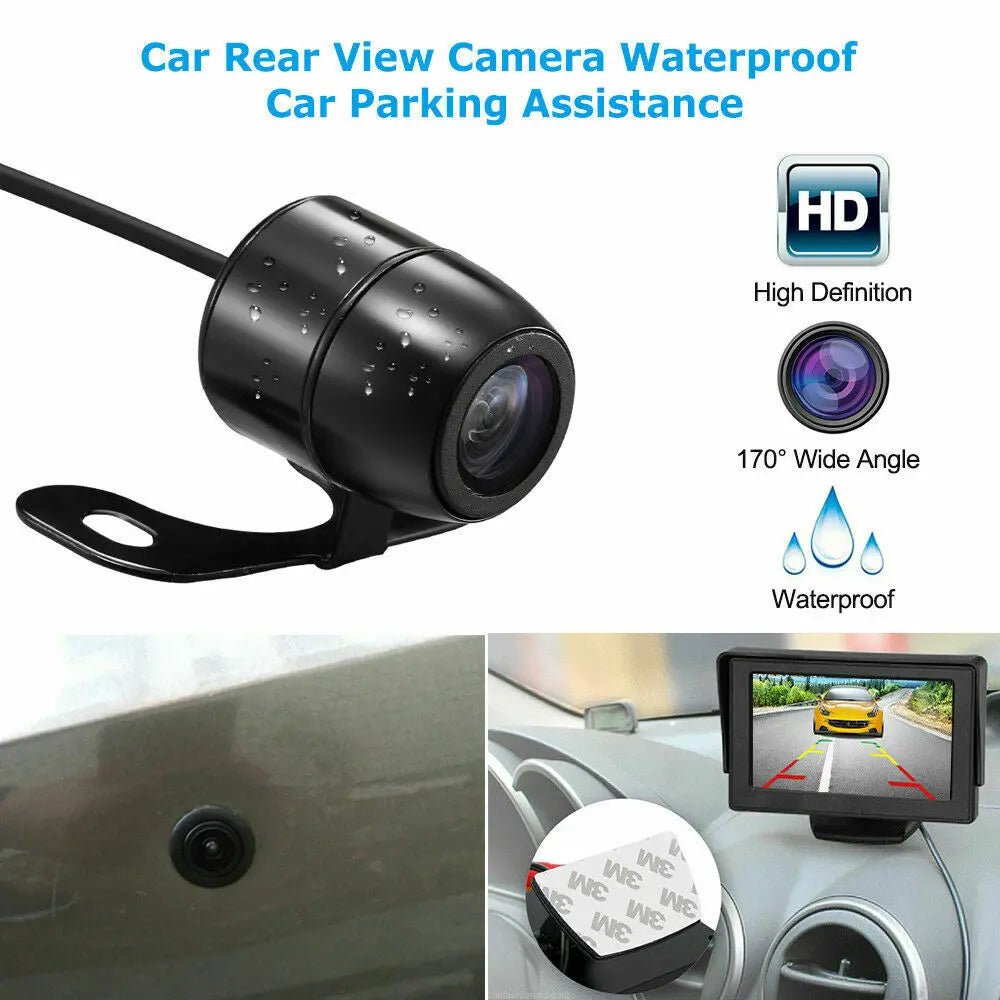

✔ Reversing camera with IR night vision
✔ Wide 170° viewing angle
✔ Real-time rear view when reversing
✔ Automatic video switching when reverse gear is engaged
✔ Waterproof camera for outdoor vehicle use
✔ Suitable for cars, vans, and light vehicles
✔ DIY-friendly installation

Monitor Specifications

• Screen size: 4.3 inch (16:9)
• Resolution: 320 × 240
• Video system: PAL / NTSC (auto switching)
• Power supply: DC 12V

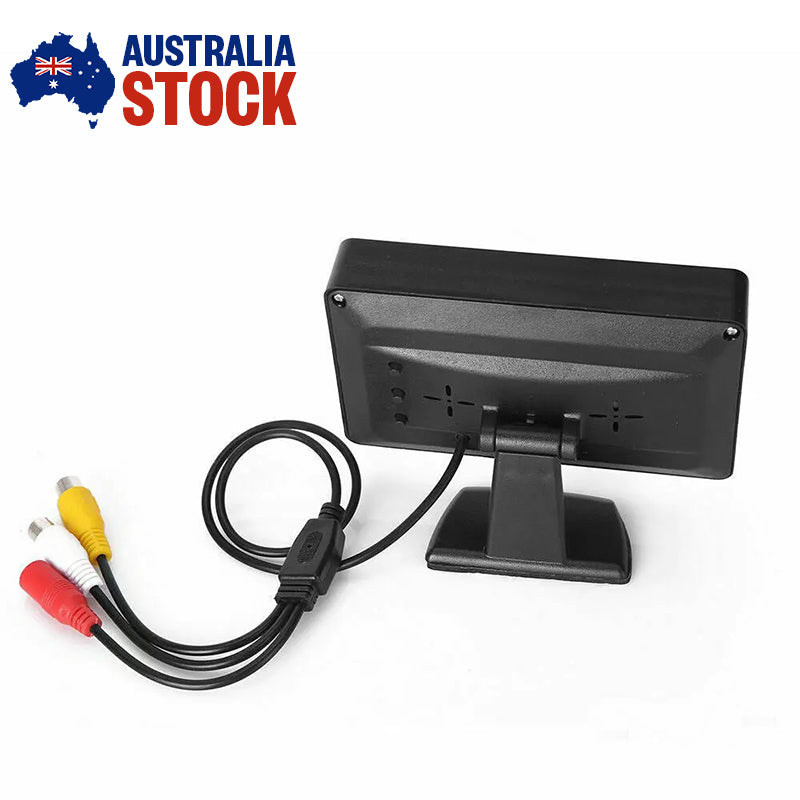

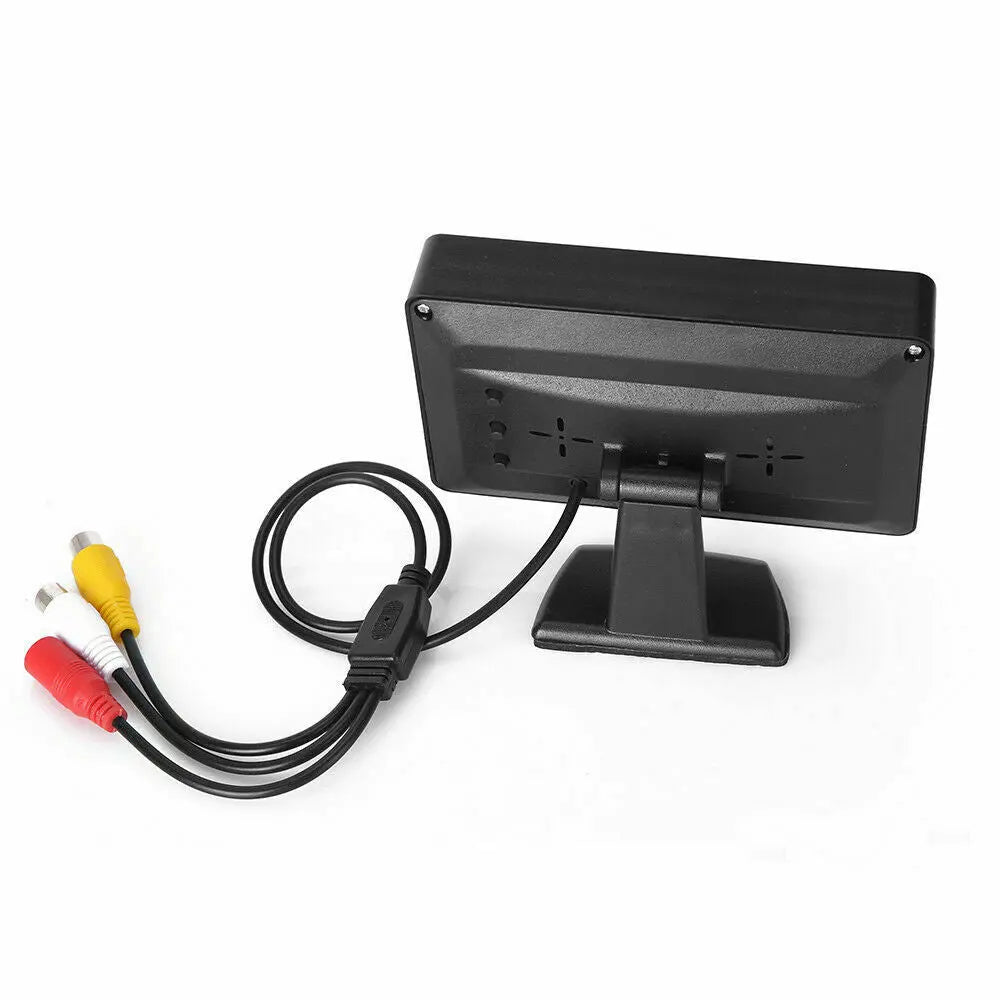

• Video input: 2 channels (V1 / V2)
• Power consumption: 2W

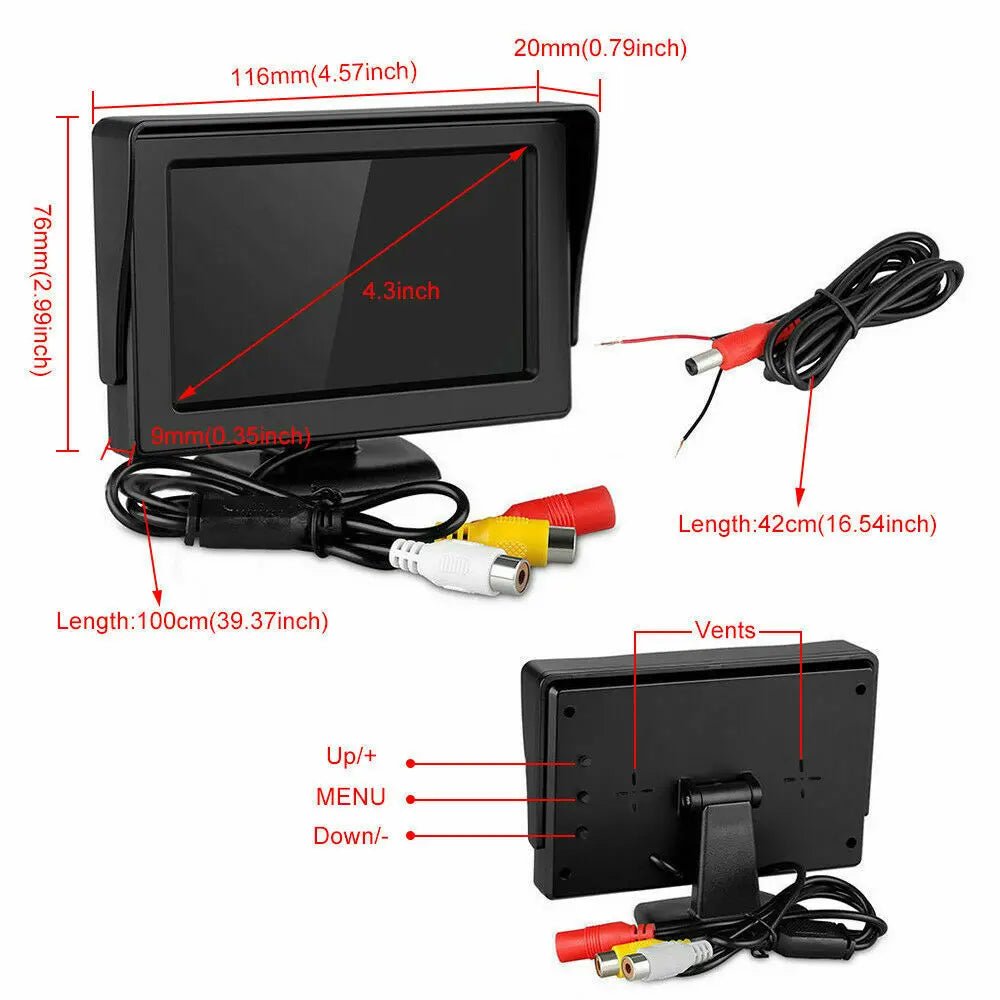

• Dimensions: 120 × 75 × 15 mm
• Displays black screen when no signal is detected

Camera Specifications

• Image sensor: 1/4" colour
• Resolution: 420 TV lines
• Viewing angle: 170°
• Night vision: Yes (IR)
• Minimum illumination: 0.3 Lux
• Video output: RCA (1.0Vp-p, 75Ω)
• Power supply: DC 8V–12V

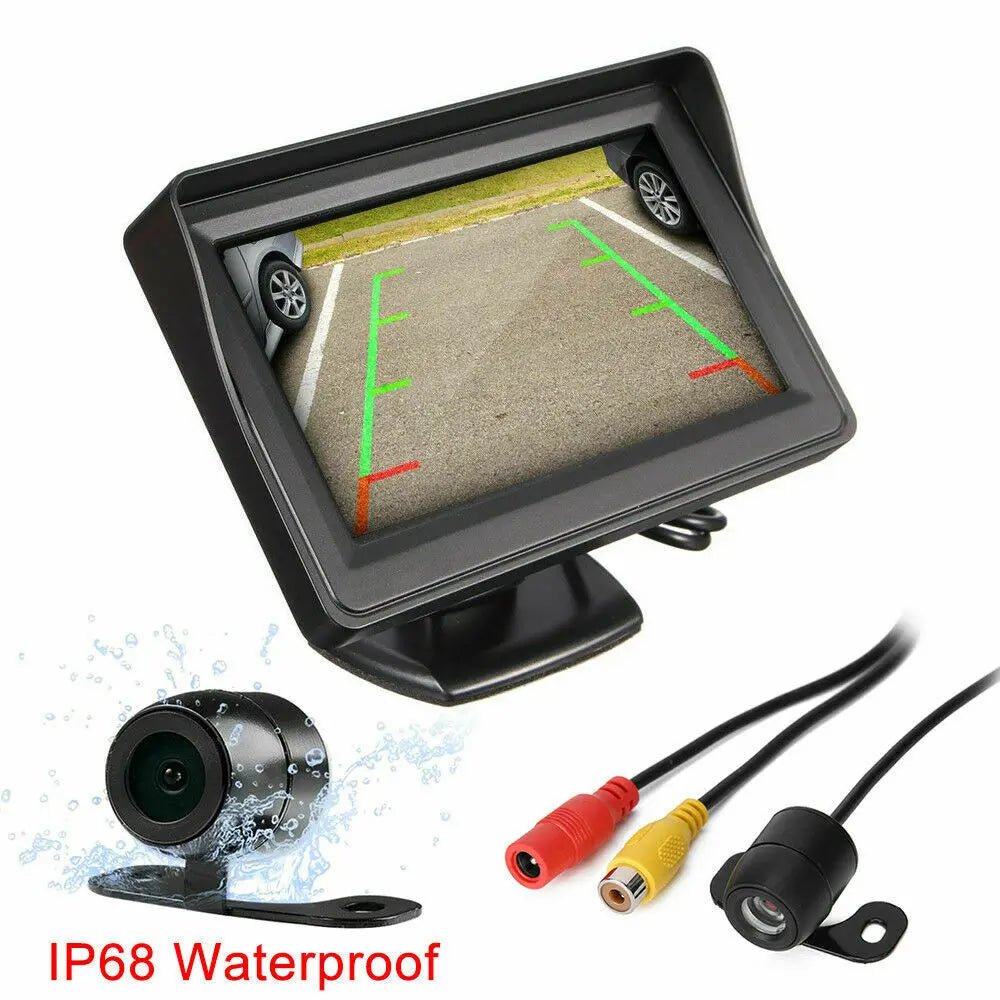

• Waterproof rating: IP68
• Operating temperature: -30°C to 65°C

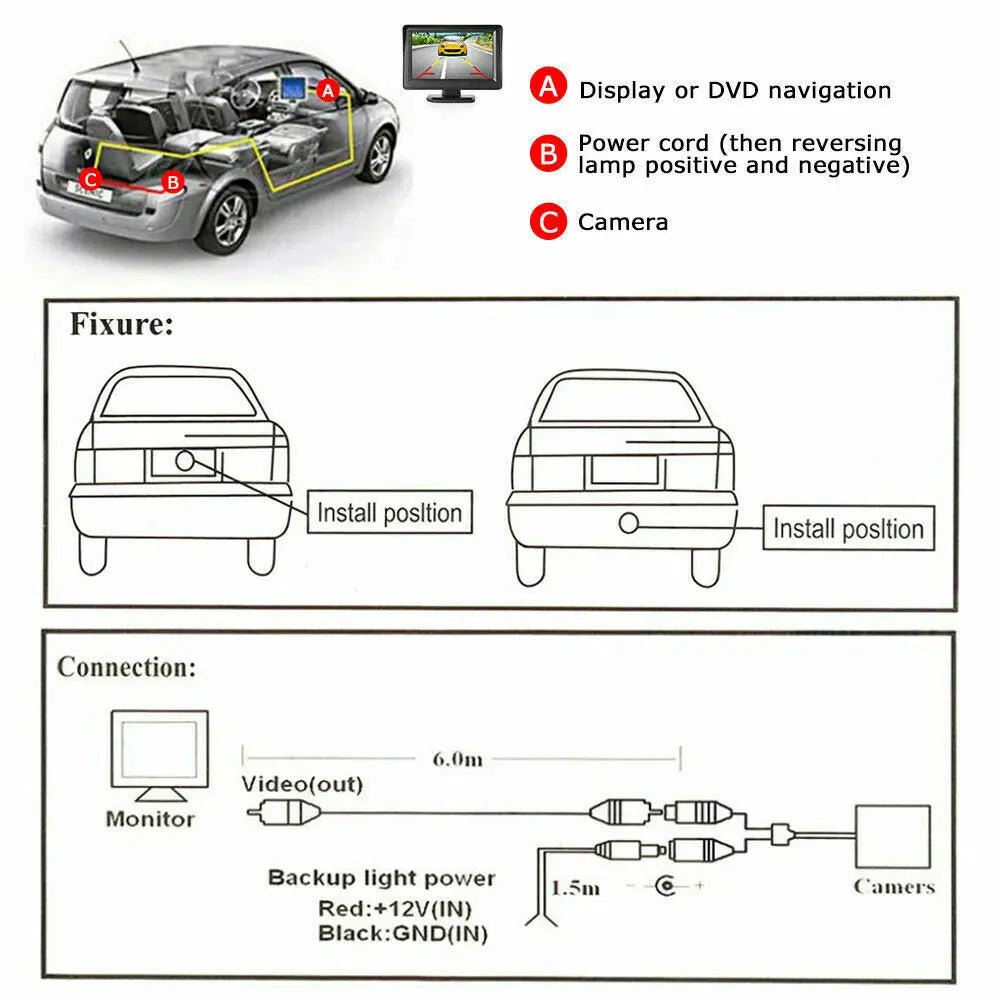

Installation Overview

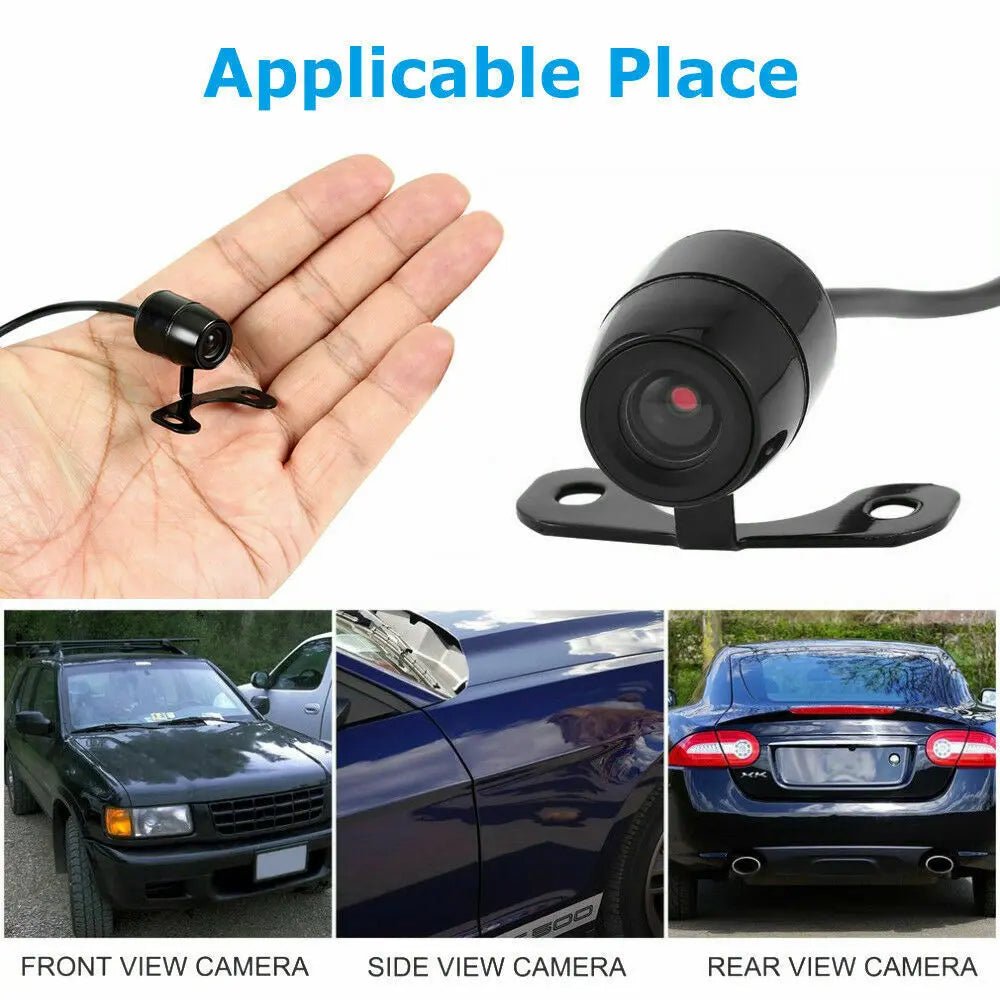

1. Mount the camera near the license plate, rear window, or suitable rear position

2. Adjust the camera angle for optimal viewing

3. Connect power cables to the vehicle’s 12V system

4. Connect the camera video cable to the monitor (Video V1)

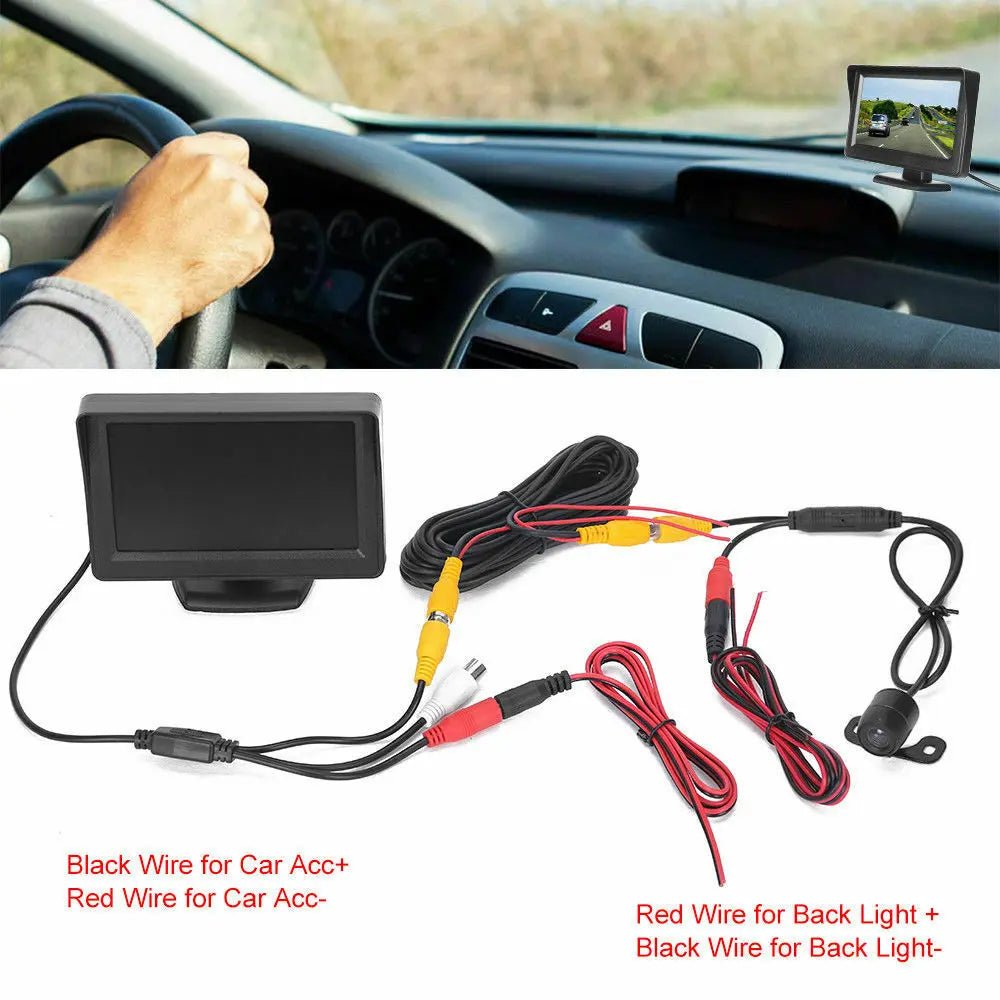

Tip: Connect the camera power to the reversing light for automatic activation when reversing.

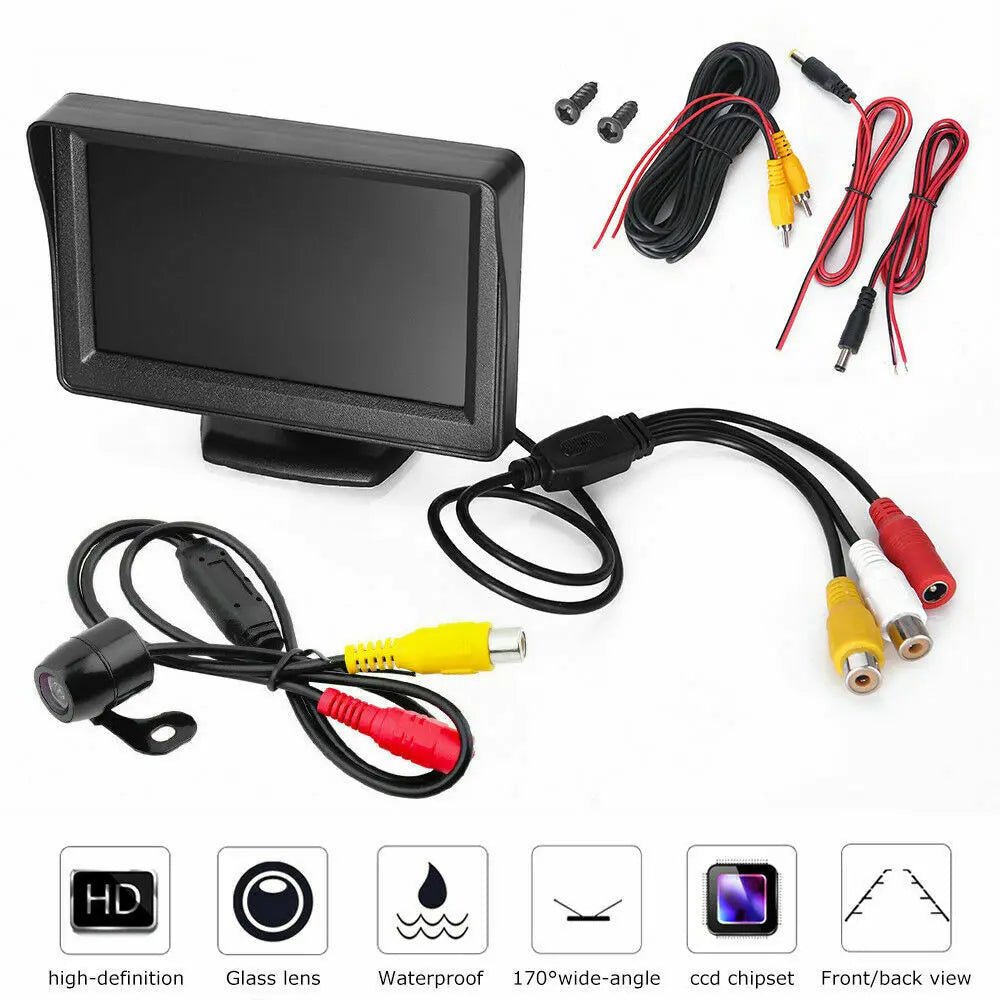

What’s Included

• 1 × Reversing camera
• 1 × 4.3" TFT LCD monitor
• 1 × Monitor power cable
• 1 × Camera power cable
• 1 × 6 m video cable
• 1 × User manual

Why Choose This Rear View Kit?

✔ Improves rear visibility when reversing
✔ Wide viewing angle for better coverage
✔ Night vision support for low-light conditions
✔ Compact monitor size fits most dashboards
✔ Cost-effective reversing assistance solution

Suitable for cars, vans, and light vehicles.
